Wednesday, March 6, 2013

Panne a dévers for the Purlin Lip Cut Angle

Geometry from the book La Charpente En Bois by  Gilbert Emery

Purlin at hip rafter with lip cut angle

Panne à la hanche chevron avec angle de coupe à lèvre




Another way of developing the geometry for the purlin lip cut angle.

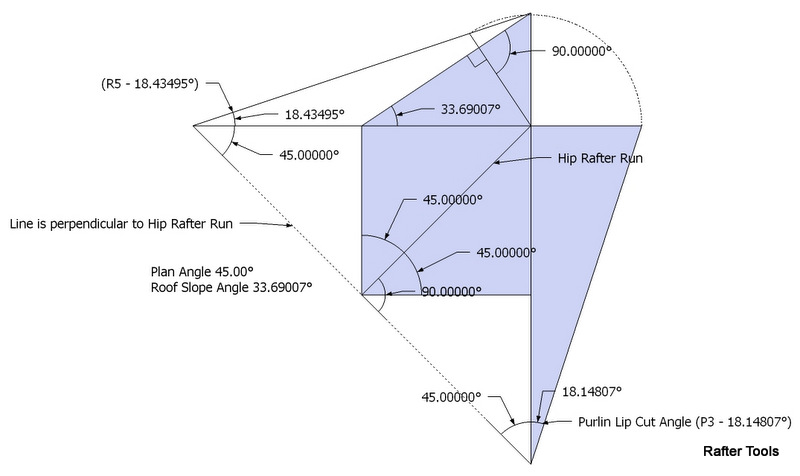

Equal pitched example.

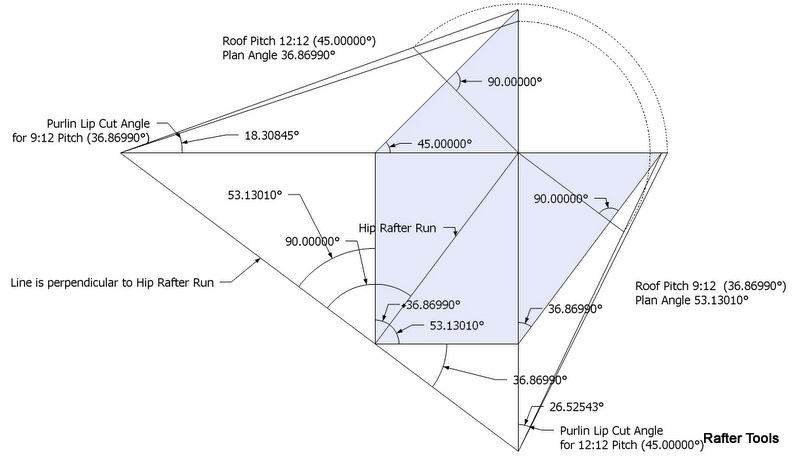

Unequal pitched example.
